Gout Pictures & Infographics: Symptoms, Inflammation, and Treatment

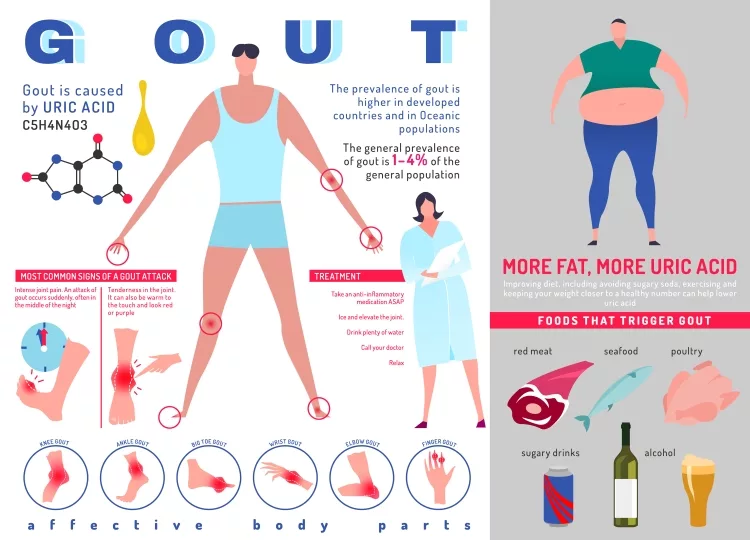

Gout pictures and infographics make the disease impossible to misunderstand — the swollen, scarlet, heat-radiating joint of an acute attack is among the most visually distinctive presentations in all of inflammatory arthritis. This guide collects clinical photography, anatomical diagrams, and evidence-based infographics covering gout symptom presentation, inflammation stages, joint destruction, and treatment pathways, serving every stage of the condition through the gout pain lens. The images here are not decorative — they are diagnostic tools.

Gout is the most common form of inflammatory arthritis worldwide, driven by monosodium urate crystal deposition in and around joints. Understanding the visual signatures of each disease stage — from the first podagra attack to chronic tophaceous deformity — helps patients recognize what is happening in their bodies and informs treatment decisions before irreversible damage occurs. The gout pictures and infographics collected here document that full clinical spectrum.

Visual literacy around gout matters because the condition overlaps symptomatically with septic arthritis, pseudogout, and rheumatoid arthritis — conditions that require fundamentally different treatments. Knowing what differentiated gout looks like, its distribution pattern, its timeline, and its associated skin changes, is the first step toward accurate diagnosis and effective management. For a deeper overview of gout's relationship to the broader arthritis family, the guide on Arthritis and Gout: Types, Risks, Symptoms provides essential clinical context.

Gout Pictures and Infographics: Reading the Visual Record of Inflammation

The Acute Attack: Appearance and Distribution

An acute gout attack presents with visual characteristics that experienced clinicians recognize within seconds. The affected joint swells rapidly — often within hours — and the overlying skin becomes erythematous, shiny, and taut. In clinical photography, acute podagra shows a joint so distended it appears ready to split. The periarticular erythema spreads several centimeters beyond the joint margin, mimicking cellulitis in severe cases.

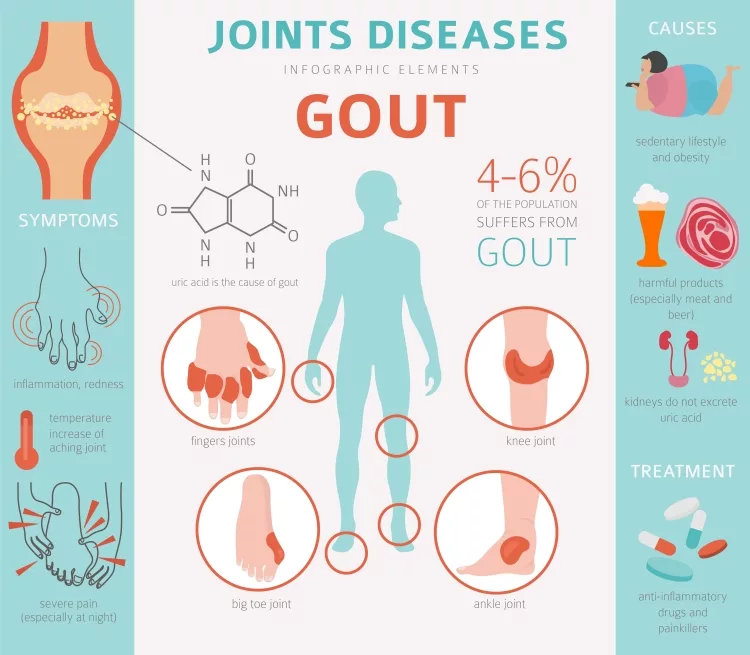

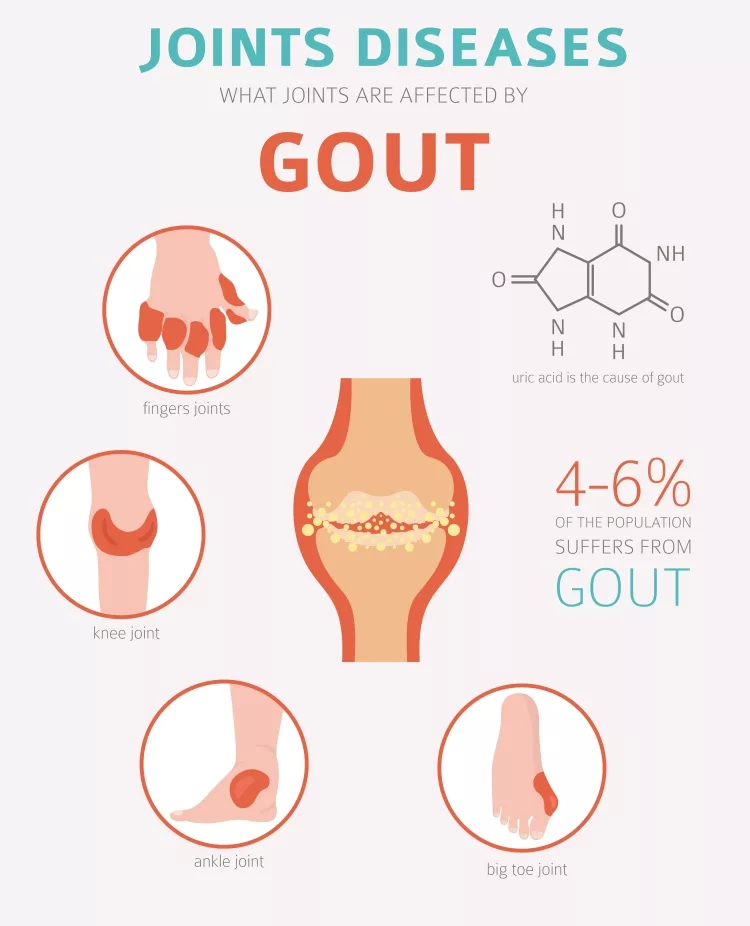

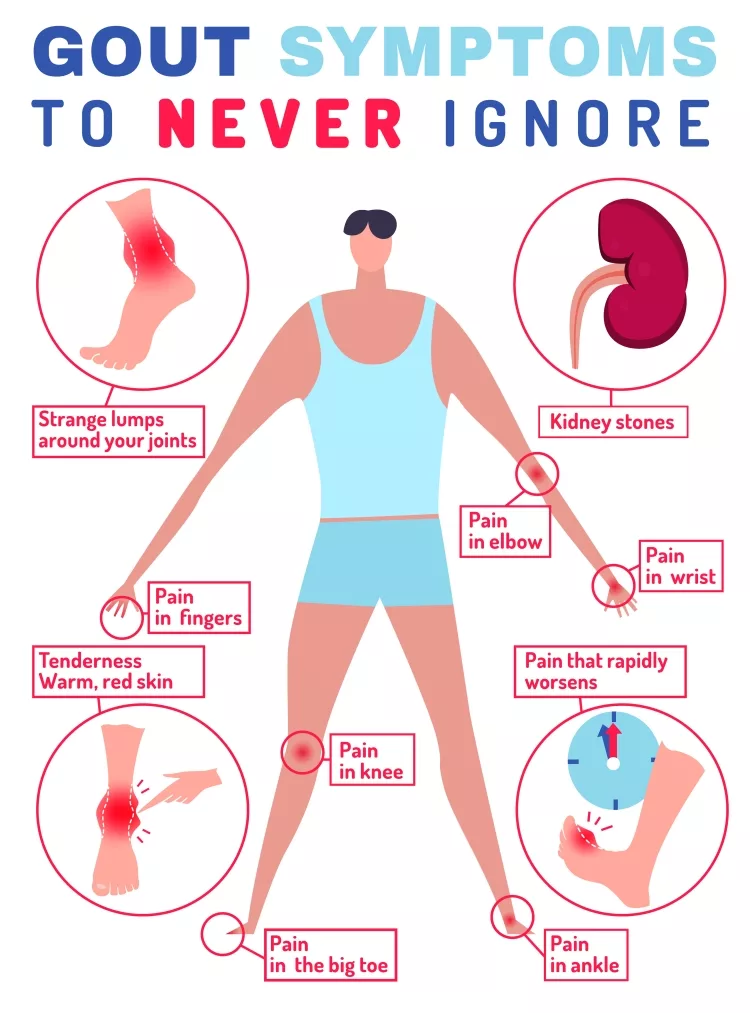

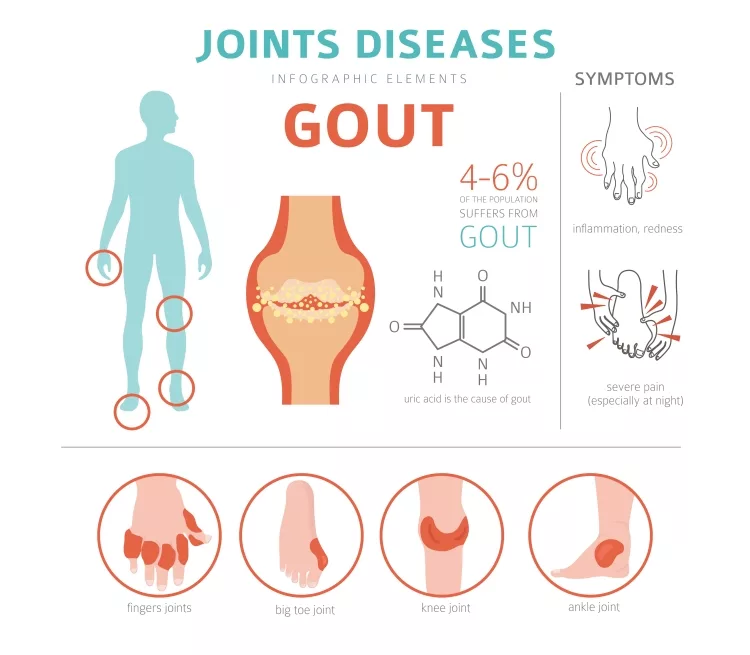

The distribution of gout follows predictable patterns driven by temperature gradients. Lower-extremity joints — the big toe, ankle, and knee — are affected first and most severely because monosodium urate crystals precipitate preferentially in cooler peripheral tissues. The big toe is involved in roughly 50% of first attacks, and over 90% of gout sufferers experience podagra at some point in the disease course. Severe cases show not just primary joint involvement but surrounding soft tissue edema extending into the foot and lower leg.

The pain intensity during an acute attack ranks among the highest on validated pain scales — consistently scoring 9 or 10 out of 10 — and this severity is part of what distinguishes gout from other arthritis forms in clinical assessment. Images showing a patient's guarding posture and inability to bear weight communicate as much as joint appearance alone.

Gout in the Hands and Fingers

While the foot dominates gout's clinical reputation, upper-extremity involvement is common, particularly in patients with longstanding hyperuricemia or those taking diuretics. The fingers, wrists, and elbows serve as frequent sites for both acute attacks and tophus formation. Hand involvement causes significant functional impairment — gripping, pinching, and fine motor tasks become painful or impossible during flares.

Gout in the finger joints presents differently from rheumatoid arthritis, though the two can look superficially similar in photographs. Gout affects joints asymmetrically and produces more dramatic acute inflammation, with skin over affected finger joints showing the same taut, erythematous quality seen in foot gout. During remission, chronic tophi in finger joints may resemble rheumatoid soft tissue swelling, making laboratory confirmation essential. Patients dealing with hand and finger joint issues may benefit from exploring thumb braces for arthritis, which reduce mechanical stress on inflamed joints during active flares.

The act of massaging acutely inflamed joints, commonly depicted in clinical photography, is actually contraindicated during active attacks. Manipulation of urate-crystal-laden joints intensifies the inflammatory cascade. Gentle range-of-motion work during the inter-critical period, however, helps maintain joint mobility and prevents stiffness from becoming permanent.

Toe and Foot Deformity in Advanced Disease

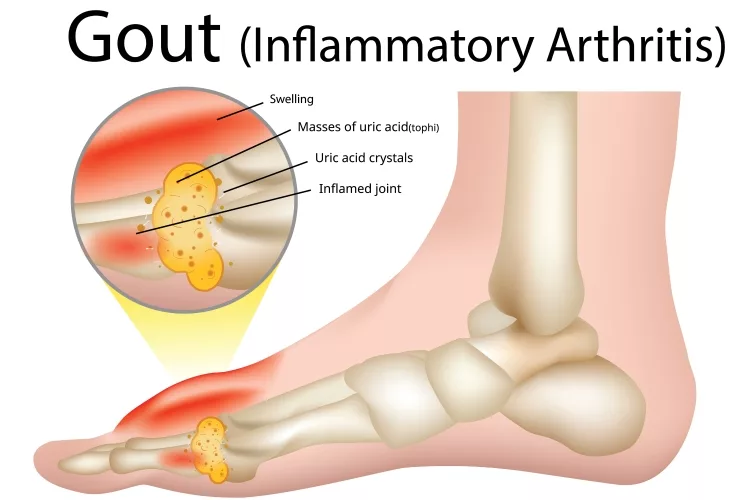

Chronic tophaceous gout produces some of the most visually striking pathology in all of musculoskeletal medicine. Years of uncontrolled hyperuricemia lead to massive urate crystal deposits that deform joint architecture, erode bone, and generate visible subcutaneous nodules. The toes and feet bear the brunt of this destructive process in most patients.

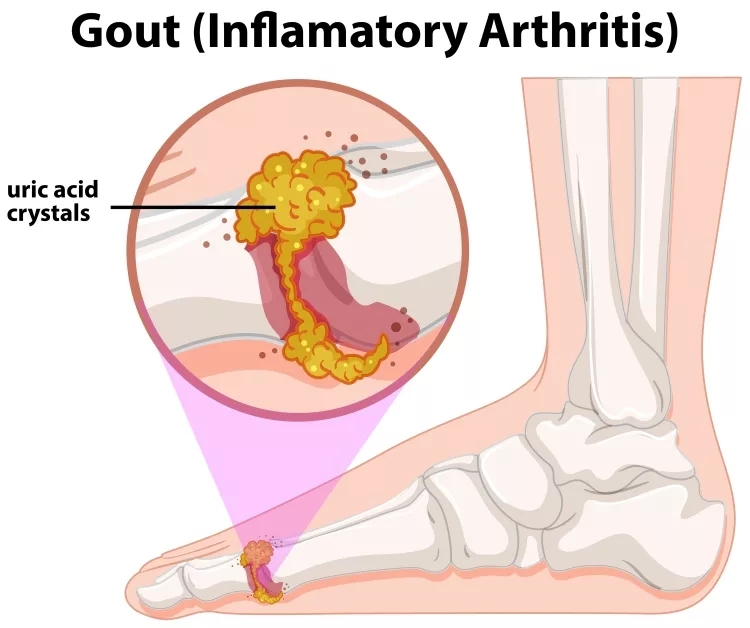

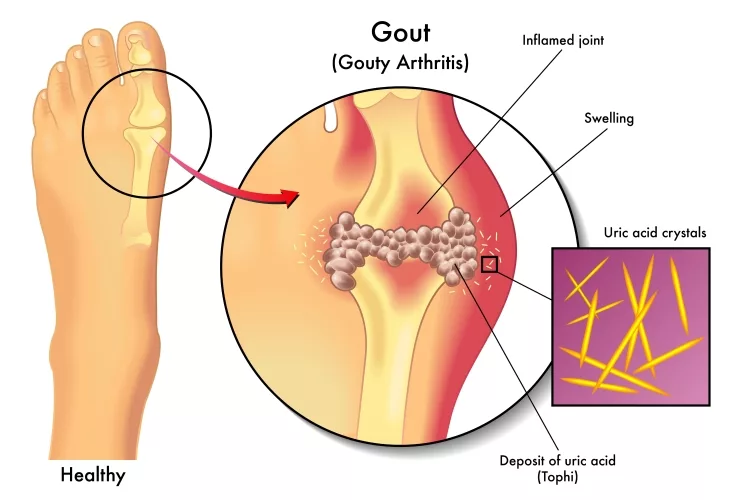

Tophi — firm, chalky nodules of monosodium urate crystals — can grow to remarkable sizes, particularly over the first MTP joint, the Achilles tendon, and the olecranon bursa. In clinical photographs, large tophi appear as irregular subcutaneous masses that distort the normal contour of the foot. Skin over tophi is often thin, with white crystalline material occasionally visible through the dermis or ulcerating to the surface.

The deformity pattern in chronic gout differs from bunion formation, though both affect the first MTP joint. Gout produces a more diffuse, nodular enlargement, while bunions cause a characteristic medial deviation of the hallux. Patients experiencing painful toe deformity should understand the clinical distinction — when bunions need to be treated outlines the decision points specific to bunion pathology. For the full range of dermatological complications that accompany gout in the lower extremities, common skin issues of the feet covers the overlapping conditions practitioners encounter regularly.

The gout pictures and infographics documenting disease progression carry an important message: the disfiguring deformity seen in advanced cases is preventable. With proper medical management and sustained urate-lowering therapy initiated early, most patients never reach this stage of joint destruction.

The Biological Cost of Hyperuricemia

How Uric Acid Accumulation Develops

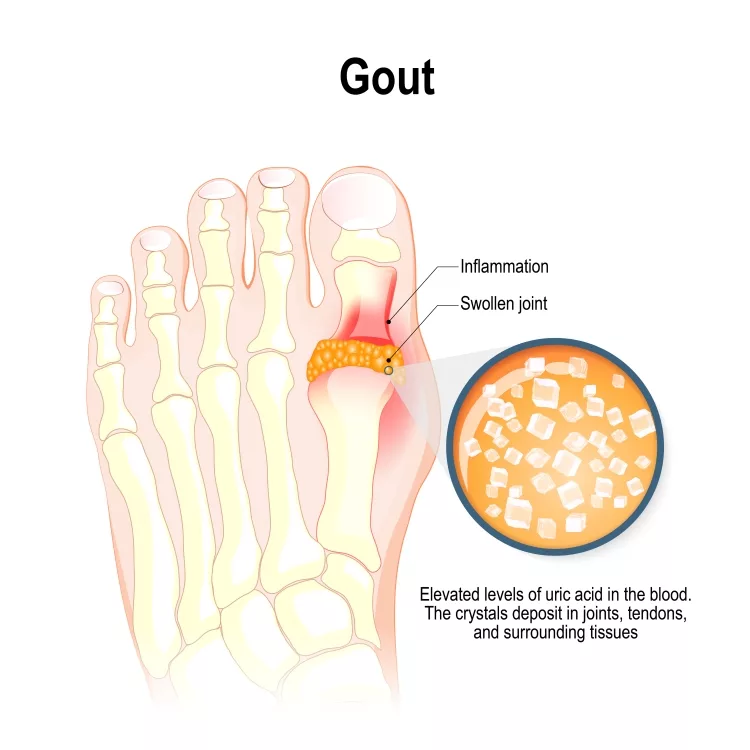

Gout is fundamentally a metabolic disorder before it becomes a joint disease. Hyperuricemia — serum urate above 6.8 mg/dL, the saturation threshold at physiological temperature — develops through either overproduction or underexcretion of uric acid, or a combination of both. Approximately 90% of gout patients are under-excretors; their kidneys fail to clear urate efficiently, allowing it to accumulate in blood and eventually crystallize in cooler peripheral tissues.

Unlike most mammals, humans lack uricase — the enzyme that converts urate to the more soluble allantoin. This evolutionary loss, paradoxically linked to improved antioxidant capacity in hominids, means humans must manage urate through dietary control, adequate hydration, and when necessary, pharmaceutical intervention. The absence of uricase is the core biological reason gout exists as a human-specific disease at all.

Key risk factors for hyperuricemia include: male sex, obesity, hypertension, chronic kidney disease, diuretic use, and excessive consumption of purines and fructose. Alcohol — particularly beer and spirits — raises urate through multiple simultaneous mechanisms: increased purine substrate load, reduced renal excretion, and lactate competition with urate at tubular secretion sites.

Long-Term Joint and Tissue Damage

Left uncontrolled, hyperuricemia inflicts progressive structural damage well beyond what any gout photograph captures at a single moment. Urate crystals trigger a neutrophil-mediated inflammatory response that, over repeated attacks, causes synovial membrane thickening, cartilage erosion, and subchondral bone damage. On radiographs, chronic gout produces the pathognomonic "overhanging edge" erosion — a punched-out lesion with a characteristic sclerotic border that distinguishes it from rheumatoid erosions.

The systemic consequences extend beyond joints. Urate crystal deposition in the kidneys causes uric acid nephrolithiasis in approximately 20% of gout patients. Interstitial nephropathy from chronic urate exposure can impair renal function over years. For authoritative, up-to-date clinical research on gout's systemic effects, the National Institute of Arthritis and Musculoskeletal and Skin Diseases (NIAMS) maintains current guidance on disease mechanisms and outcomes.

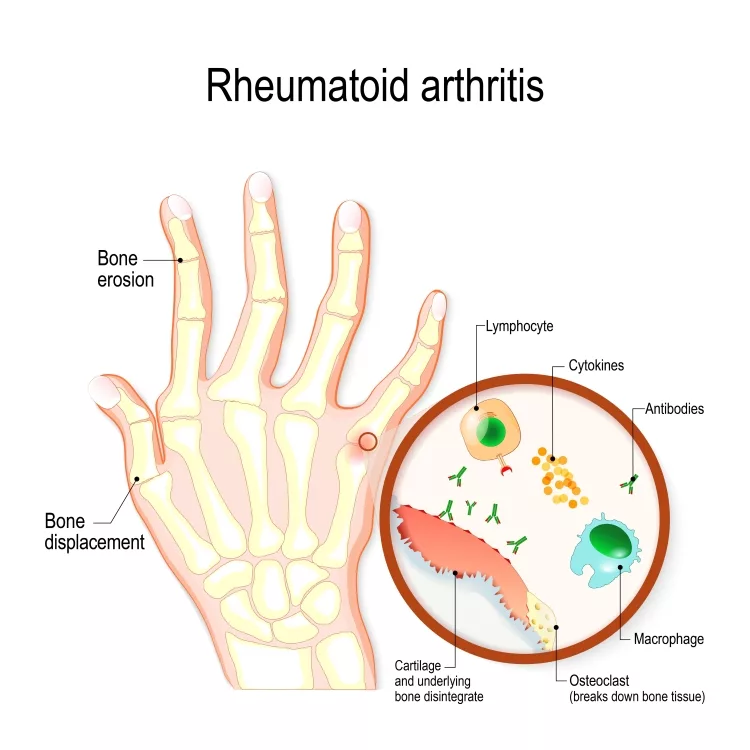

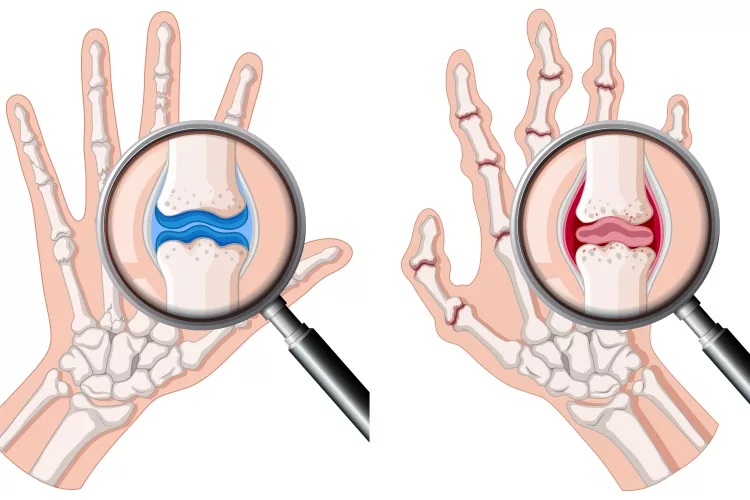

Gout vs. Other Arthritis Forms: Visual and Clinical Comparisons

Key Distinguishing Features in Clinical Images

Accurate differentiation of gout from other arthritis forms is clinically critical because treatment approaches diverge sharply. Colchicine and NSAIDs that resolve a gout attack are ineffective for septic arthritis; missed septic arthritis is a surgical emergency. Visual assessment alone is insufficient, but gout does carry distinctive visual hallmarks that narrow the differential considerably.

Clinical warning: A hot, swollen joint in a patient with fever or immunosuppression requires joint aspiration to rule out septic arthritis before attributing the presentation to gout — even in patients with a confirmed prior history of gout attacks.

Gout's visual signature includes: asymmetric joint distribution, predilection for lower-extremity joints in early disease, dramatic acute-phase inflammation with periarticular erythema extending well beyond the joint margin, and — in chronic disease — the chalky, irregular subcutaneous nodules of tophi. Rheumatoid arthritis, by contrast, affects joints symmetrically, favors small hand and wrist joints, and produces a different pattern of soft tissue swelling and deformity over time.

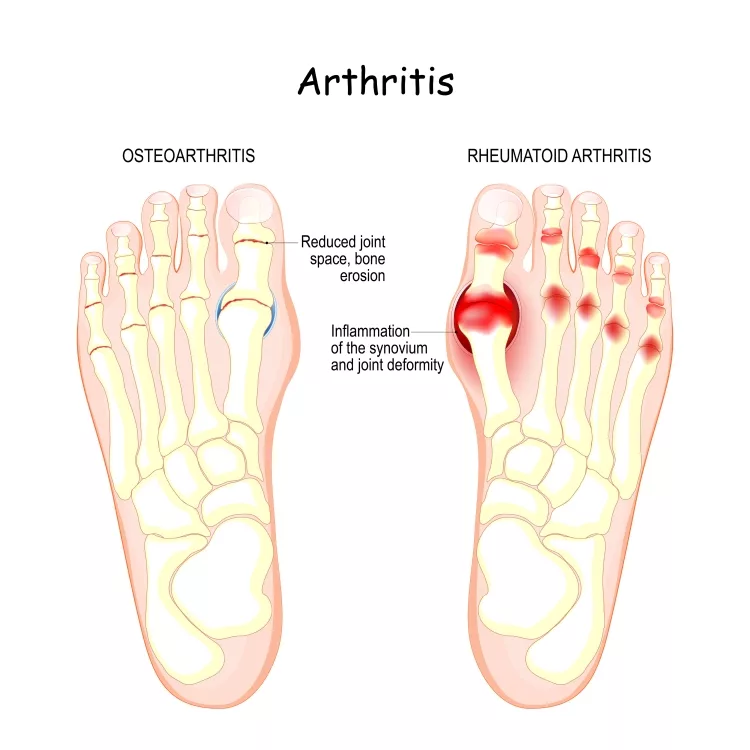

Side-by-Side Comparison by Arthritis Type

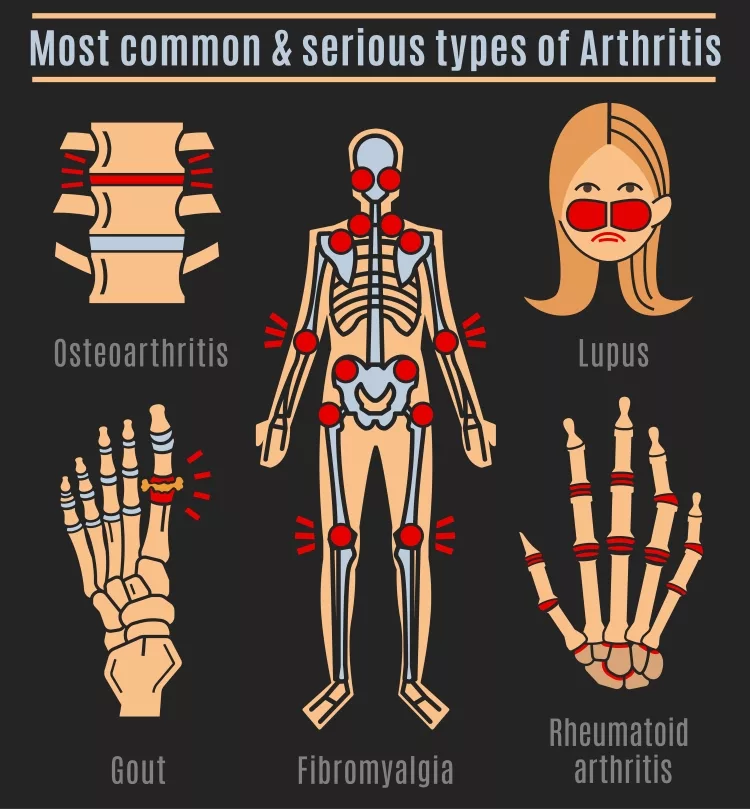

The infographic comparison of arthritis types reinforces what the table shows numerically: gout occupies a distinct mechanistic and clinical niche. Its treatment is among the most straightforward of all arthritis forms when the diagnosis is correct — allopurinol and febuxostat reliably suppress urate production, and dietary modification provides meaningful adjunctive benefit at essentially zero cost.

When to Seek Emergency Care — and When Home Management Applies

Emergency Red Flags That Demand Immediate Attention

Not every gout attack requires emergency evaluation. Certain presentations, however, demand immediate clinical assessment because delay risks permanent joint damage, systemic infection, or a missed diagnosis that mimics gout dangerously.

• Fever accompanying joint inflammation — always rules out septic arthritis first; the two conditions can be clinically indistinguishable
• Rapid spread of erythema beyond the joint margin, suggesting cellulitis or early bacteremia
• Joint pain in immunosuppressed patients — transplant recipients, those on biologics or corticosteroids
• First-ever joint attack without a confirmed gout diagnosis — joint aspiration for crystal identification is mandatory
• Suspected tophus rupture with open wound — infection risk is immediate and significant
• Flank pain with hematuria in a gout patient — uric acid nephrolithiasis requiring urological evaluation

Pro insight: Patients on allopurinol who experience sudden severe flares after dose increases should not reduce or stop the drug — rapid urate lowering mobilizes crystals from tophi and triggers mobilization flares that require colchicine prophylaxis, not dose reduction.

Presentations Appropriate for Home Management

Established gout patients with a confirmed diagnosis and prior successful self-treatment can manage most acute attacks at home. Effective home management follows a consistent protocol:

• Initiate NSAIDs (ibuprofen, naproxen, or indomethacin) within the first 24 hours at full therapeutic doses
• Alternatively, use the evidence-based low-dose colchicine protocol: 1.2 mg followed by 0.6 mg one hour later
• Elevate the affected limb above heart level — meaningfully reduces edema and pain intensity
• Apply ice packs to the affected joint for 20-minute intervals — not heat, which accelerates crystal formation in superficial tissues
• Maintain hydration at 2–3 liters of water daily throughout the attack
• Rest the joint completely — weight bearing on an acutely inflamed first MTP joint prolongs the attack duration

Attacks persisting beyond 10 days despite appropriate treatment warrant clinical evaluation. Attacks returning within weeks of resolution indicate inadequate serum urate control and the need to initiate or adjust urate-lowering therapy. For practical approaches to managing lower-extremity pain during and between flares, how to reduce foot pain covers strategies directly applicable to gout-related discomfort.

Treatment Options: Evidence, Benefits, and Limitations

Pharmaceutical Interventions

Urate-lowering therapy (ULT) is the cornerstone of long-term gout management. The target serum urate is below 6.0 mg/dL for most patients and below 5.0 mg/dL for those with tophi — thresholds consistently recommended by ACR and EULAR guidelines. Allopurinol, a xanthine oxidase inhibitor, is first-line in most clinical settings. It requires dose titration based on renal function and HLA-B*5801 screening in high-risk populations (Korean, Han Chinese, and Thai descent) due to the rare but life-threatening Stevens-Johnson syndrome risk.

Febuxostat offers an alternative for allopurinol-intolerant patients but carries a cardiovascular mortality signal in certain populations, limiting its use. Probenecid, a uricosuric agent, works well for under-excretors with preserved renal function but requires attention to urine alkalinization and hydration to prevent stone formation.

Acute attack management draws from three drug classes, each with distinct contraindications:

• NSAIDs — effective but problematic in chronic kidney disease, peptic ulcer disease, and cardiovascular risk
• Colchicine — requires dose reduction in renal impairment; interacts significantly with CYP3A4 inhibitors including statins and macrolide antibiotics
• Corticosteroids — often the safest choice in elderly patients with multiple comorbidities; no renal or GI contraindications at standard doses

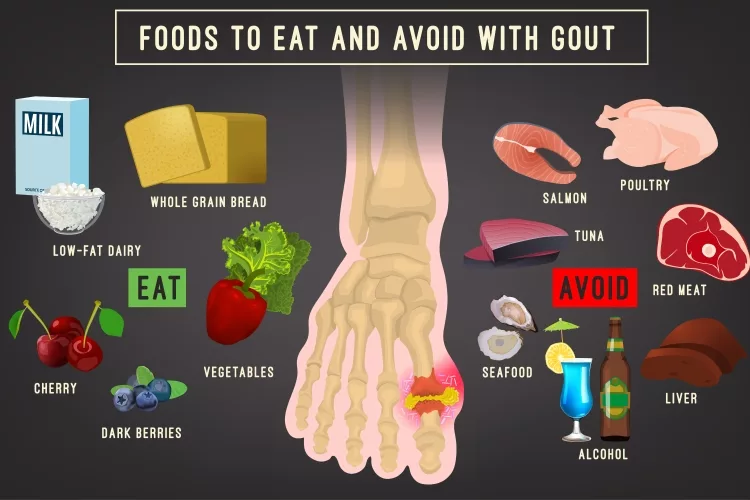

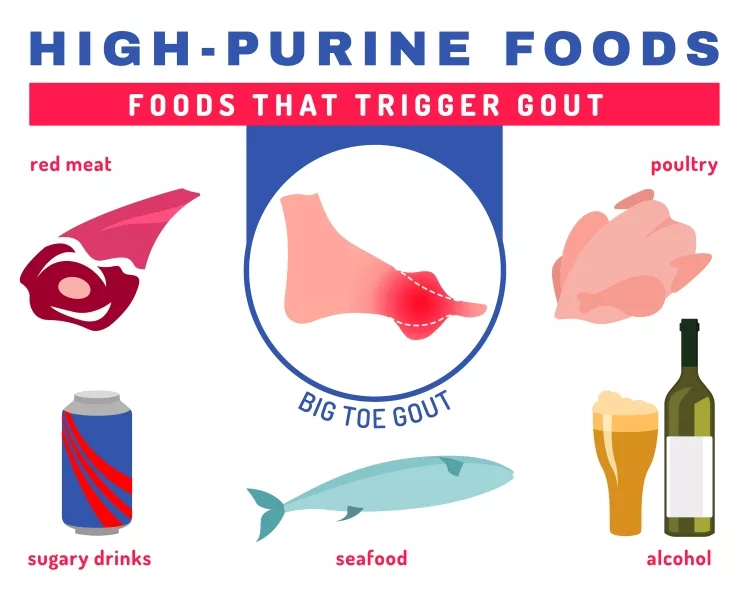

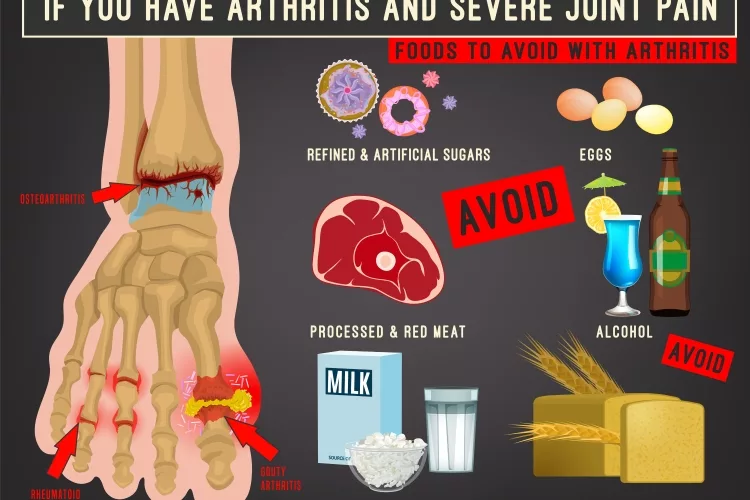

Dietary and Lifestyle Modifications

Diet modification reduces serum urate modestly — typically by 1–2 mg/dL — but provides meaningful additive benefit when combined with ULT. The primary interventions supported by consistent epidemiological and clinical data:

• Eliminate organ meats and shellfish — the highest purine-density foods, with consistent and measurable effects on serum urate
• Limit red meat (beef, pork, lamb) to modest portions — significant purine load, though less than organ meats
• Eliminate alcohol, particularly beer and spirits — alcohol raises urate through multiple simultaneous mechanisms
• Increase low-fat dairy — casein and lactalbumin have documented uricosuric properties
• Eliminate high-fructose beverages — fructose metabolism generates urate and reduces renal excretion
• Increase caffeinated coffee intake — inverse relationship with gout incidence is consistent across multiple large cohort studies

Weight loss in obese patients reduces serum urate substantially — a 10-kilogram reduction corresponds to approximately 1 mg/dL decrease. Rapid weight loss through extreme caloric restriction raises urate transiently through ketosis and should be approached gradually. The full treatment protocol, including dietary strategies within a complete management framework, is covered in the guide on how to get rid of gout.

Newly Diagnosed vs. Chronic Gout: Different Stages, Different Priorities

Priorities for the Newly Diagnosed

The first gout attack is simultaneously a medical event and a clinical opportunity. Patients who receive education and appropriate follow-up after their first flare show dramatically better long-term outcomes than those who treat the acute episode and return to unchanged behavior. Key priorities immediately following a first diagnosis:

• Establish baseline serum urate — defines the magnitude of the metabolic problem and guides treatment intensity
• Complete metabolic workup: renal function, lipid panel, fasting glucose, and blood pressure to assess cardiovascular comorbidity burden
• Discuss dietary and alcohol modification with realistic expectations — these changes help but rarely normalize urate alone
• Understand prophylactic colchicine — initiation of ULT without prophylaxis triggers mobilization flares in up to 30% of patients
• Recognize that complete inter-critical resolution does not mean cure — urate crystal deposition continues invisibly until serum urate is controlled

The newly diagnosed patient's most consequential error is interpreting complete resolution of the acute attack as evidence that no further treatment is needed. Gout between attacks is not silent — joint cartilage sustains subclinical damage, tophi grow incrementally, and kidney function erodes imperceptibly. Early ULT initiation prevents all of this progression for most patients.

Long-Term Management in Chronic Tophaceous Disease

Chronic tophaceous gout — defined by visible tophi, frequent attacks (three or more per year), or radiographic damage — requires more aggressive management and realistic expectations about timeline. Tophi resolve slowly on sustained ULT, typically over one to five years depending on the initial crystal burden. Standard allopurinol doses of 300 mg daily are often insufficient for patients with significant tophaceous disease; doses up to 800 mg daily, adjusted for renal function, may be required to achieve and maintain target urate.

Supportive devices play a practical role during active disease phases. Wide-fitting footwear that accommodates swollen joints, cushioned insoles, and ankle supports reduce mechanical load on inflamed tissues and allow patients to remain mobile between flares. For hand and finger tophus involvement, the options reviewed in the thumb braces for arthritis guide provide relevant bracing solutions. Plantar fasciitis treatment strategies also apply to gout patients with concurrent foot pain — the two conditions coexist frequently in older adults with metabolic syndrome, sharing foot loading as a common aggravating factor.

Surgical debulking of tophi is reserved for specific indications: tophus ulceration with infection risk, nerve compression, tendon rupture, or joint destruction requiring arthroplasty. Surgery does not substitute for medical management — ULT must continue post-operatively to prevent crystal re-accumulation and recurrence.

Frequently Asked Questions

Every picture of advanced tophaceous gout is a picture of a preventable outcome — the disease is treatable, the damage is avoidable, and the window for intervention opens at the very first attack.
